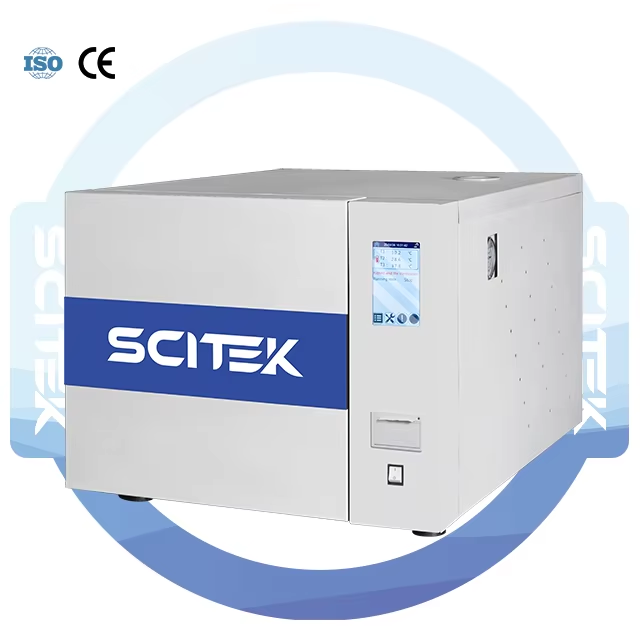

45 L Steam digital Autoclave
CAD 5400.00
Overview
The 45L Steam digital Autoclave (Model ST-B45N) is designed for efficient and reliable sterilization in veterinary settings. This unit offers automatic operation with heating, sterilization, steam discharge, and drying, easily monitored via an LCD touch screen. Built-in steam generator ensures media remains uncontaminated, while PID temperature control maintains precise sterilization temperatures between 105℃ and 136℃. The autoclave includes features such as an over-heat protection system, liquid and medical instrument programs, and water injection from a built-in water tank. Safety interlocks, including an electrical circuit safety device, door temperature interlock, and automatic atmosphere pressure adjustment, enhance operational security. Optional accessories such as a printer facilitate real-time process recording. The enclosure is constructed of SUS304 and features an Ø316x590mm chamber size with an external size of 870x600x520mm.
Key features
Automatic sterilization process with LCD touch screen monitoring PID temperature controller for precise sterilization Built-in steam generator for contaminant-free sterilization Automatic atmosphere pressure adjustment Electrical Circuit Safety Device ensures enhanced safety 105℃ to 136℃ sterilization temperature range Built-in water tank for water injection Liquid and medical instrument programs Over-heat protection system Buzzer alerts for error indication and cycle end
Technical specifications
Chamber Size(øxh): Ø316x590mm Chamber Material: SUS304 Sterilization Temperature: 105~136 ℃ Designed Temperature: 150℃ Max. Working Temperature: 136 ℃ Temp. Accuracy: 0.1℃ Temp. Uniformity: ≤±0.5℃ Designed Pressure: 0.3 Mpa Sterilization Pressure: 0.23 Mpa Temp. Controller: PID control by microprocessor Display: LCD touch screen Drying Function: YES Drying Time: 15min Sterilization Program: Dressings/Fabric program Overheat Protection: Automatically shuts off heating and provides audible and visual alarms in case of overheating. Electric Interlock Safety: Prevents the start of a cycle if the door is not properly locked or prohibits door opening when the chamber is pressurized or power is disconnected. Door-temperature Interlock Safety: Prevents explosion of liquids by cooling them down to a safe temperature limit (20℃ lower than the local boiling point) before opening the door. Anti-burning Protection: Automatically cuts off heating with audible and visual alarms when the autoclave is lacking water. Steam Pressure Safety Valve: Automatically activates when the chamber pressure exceeds the limit. Electrical Circuit Safety Device: Includes over-current and short-circuit protection for enhanced safety. Automatic Sterilization: The autoclave performs heating, sterilization, steam discharge, and drying automatically. These processes can be easily set and monitored through the LCD touch screen. Built-in Steam Generator: Ensures that the media remains uncontaminated during sterilization. Buzzer Alerts: Provides audible signals for working errors and signals the end of the sterilization cycle. Automatic Atmospheric Pressure Adjustment: Allows for installation and operation in plateau areas by automatically adjusting to the prevailing atmospheric pressure. Optional Printer: Offers the choice to connect a printer for real-time recording of the sterilization process, error logs, and alarm information. Medical Instrument Program: Rubber program Liquid Program: DIY program Water Injection Method: Built-in water tank 220v 50 Hz: Standard Sterilization Shelf 1pcs Ss Shelf: Optional Accessories Shipping Size(wx Dxh): 1150x700x700mm
Dimensions
Capacity: 45L External Size(wx Dxh): 870x600x520mm Net Weight: 65kg
